Hire Open Top Containers in Scotland

Shipping Containers of Grangemouth is a premier supplier of specialised intermodal equipment for the industrial and commercial sectors across Scotland. While some long-term projects may lead clients to buy containers as permanent assets, most businesses managing project-based logistics choose to rent containers to maintain financial flexibility and avoid the long-term storage of specialised equipment. The procurement process for specialised units begins with a detailed container quote, which allows our team to assess your cargo dimensions and site constraints before dispatch.

Our operations focus on structural integrity and the specific demands of top-loading cargo. Shipping Containers of Grangemouth inspects every rental unit to ensure it is wind and watertight, a technical term describing a container’s ability to remain completely dry inside and sealed against external weather elements. We provide equipment that meets rigorous international safety standards, ensuring heavy payloads are securely and safely handled during transit or temporary on-site storage. This commitment to quality ensures that sensitive machinery remains protected from the varied Scottish climate during the hire period.

Open Top Container Design and Mechanisms

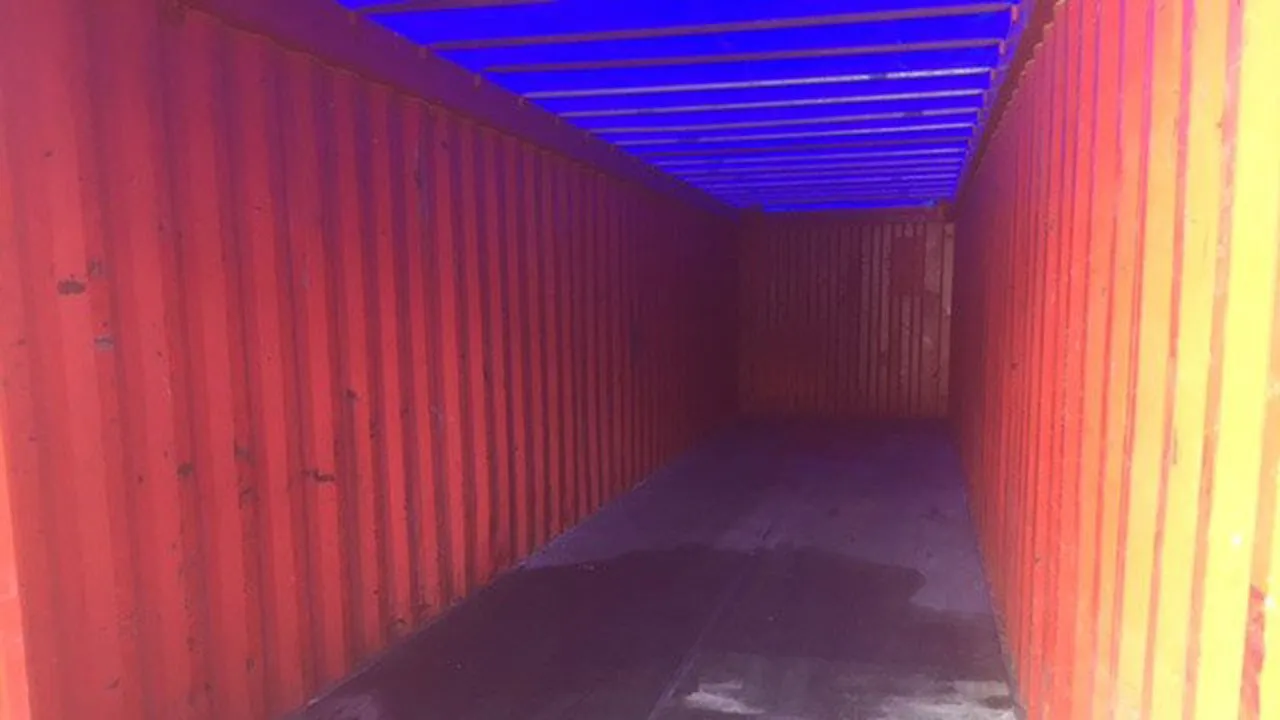

Open top containers are specifically engineered for cargo that cannot be loaded through standard end doors due to height or handling constraints. Shipping Containers of Grangemouth supplies these units to facilitate the efficient loading of bulky items such as glass sheets, timber, scrap metal, and heavy industrial machinery. Unlike standard units, these specialised containers feature a removable roof structure consisting of steel roof bows and a heavy duty tarpaulin.

Removable Roof Bows and Tarpaulins

Removable steel bows support the roof of an open-top unit. These bows provide essential lateral stability to the container walls during transit, preventing the frame from flexing under heavy loads. When loading cargo from above via crane, these bows are removed to create an unobstructed opening. Shipping Containers of Grangemouth provides rental units with reinforced tarpaulins secured with TIR wires. These wires ensure the cover remains tensioned and tamper-evident, providing a weather-sealed environment once the bows are replaced. TIR is a customs term for a wire-and-seal system that prevents unauthorised access to cargo.

The Swing Out Rear Header

A critical feature of the open top container is the swing-out rear header located above the cargo doors. This header can be unbolted and swung out of the way, allowing machinery to be wheeled or slid into the unit without being obstructed by the top door frame. Shipping Containers of Grangemouth ensures these hinges and locking pins are maintained to industrial standards, preventing mechanical failure during loading operations. This feature is essential for out-of-gauge cargo, which refers to items that exceed the internal height limits of a standard container but can still be accommodated in an open-top unit.

Dimensions and Payload Capacities

Choosing the correct unit size is vital for cargo safety and transport compliance. Grangemouth Shipping Containers stocks both 20ft and 40ft open-top units to accommodate various weight and volume requirements for our Scottish clientele.

20ft Open Top Units

The 20ft open top container is the preferred choice for dense, heavy cargo. Because of its smaller footprint, it offers higher structural rigidity per linear metre. The internal length is approximately 5.89m with a width of 2.35m. While many hire clients eventually decide to buy containers/open-top-container assets for frequent use, rental remains the most common choice for one-off plant movements. These units are often used for transporting engines, small excavators, and stone blocks.

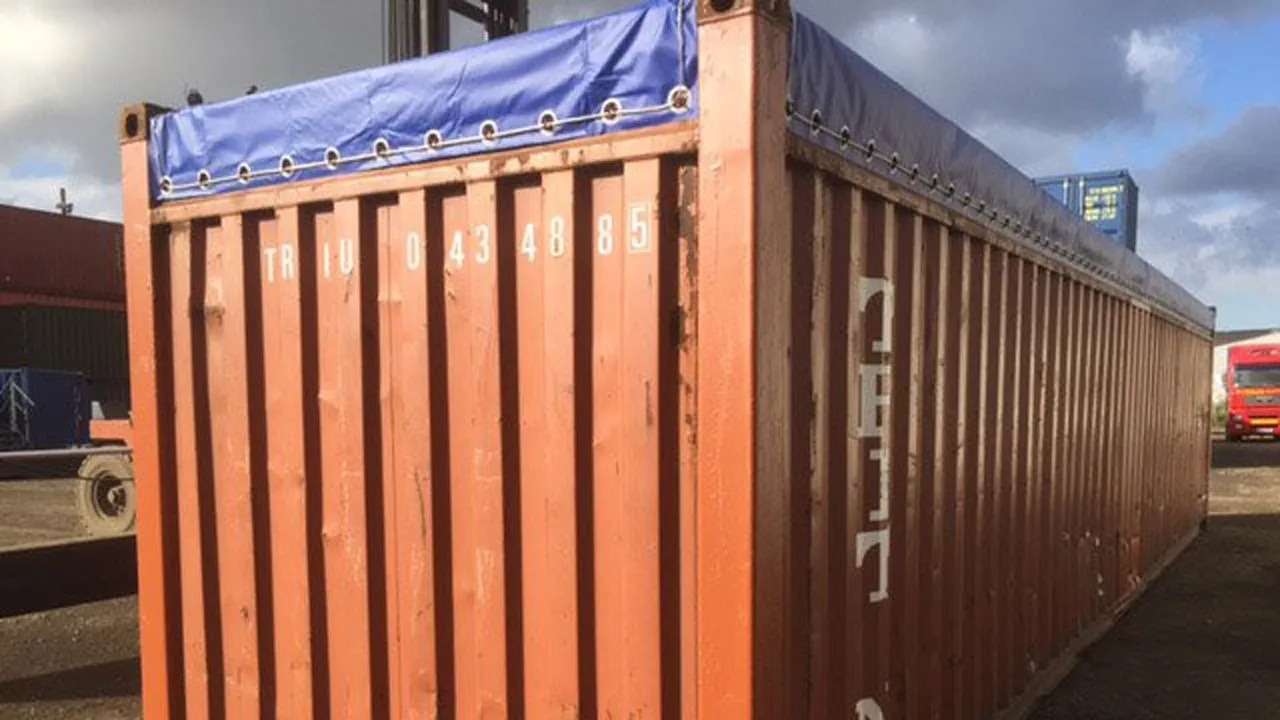

40ft Open Top Units

For longer payloads or high volume shipments, the 40ft open top container offers an internal length of 12.03m. These units are ideal for steel pipes, long timber sections, and large industrial components. We offer these via our rent containers/open-top-container service for project based logistics. While the volume is twice that of a 20ft unit, users must be mindful of the weight distribution across the floor to maintain structural stability during lifting and transport.

Technical Load Data for Hire Units

• Payload: The maximum weight of cargo the container can safely carry. For a 20ft open top, this is typically around 28,300kg.
• Tare: The weight of the empty container. A 20ft open top usually has a tare weight of approximately 2,350kg, which is slightly higher than a standard dry unit due to the reinforced top rail.
• Lashing Points: Internal lashing rings are located along the bottom side rails to secure heavy machinery using chains or straps, preventing movement during sea or road transport. Shipping Containers of Grangemouth ensures all lashing points are inspected for integrity before every hire.

Condition Grades and Technical Standards

Shipping Containers of Grangemouth categorises rental equipment into grades to help clients match the unit to their specific budget and application. We ensure that every unit, regardless of grade, is fit for purpose.

New Build (One-Trip) Containers

A one-trip container is a unit manufactured in Asia and shipped to the UK with a single cargo load to offset transport costs. These units are in near-pristine condition and are the best choice for businesses requiring maximum longevity and aesthetic appeal. They feature the latest locking mechanisms and factory-grade paint systems, making them ideal for high-profile sites or equipment conversions.

IICL and Cargo Worthy Used Units

Used open-top units are sourced from international shipping fleets after approximately 10 to 12 years of service. Shipping Containers of Grangemouth provides IICL-grade units for demanding applications. IICL stands for the Institute of International Container Lessors, denoting a high standard of used unit repair that exceeds standard cargo-worthy requirements. For localised storage or regional transport, we offer cost-effective used units that remain structurally sound and watertight. We also facilitate used shipping container sales Grangemouth for clients looking to permanently own older units.

The CSC Plate for Export

Every container used for international shipping must have a valid CSC plate. A CSC plate is a safety approval plate required by the International Convention for Safe Containers, signifying the unit is safe for stacking and transport on sea vessels. Shipping Containers of Grangemouth ensures that all units provided for export hire have been inspected and plated by certified technicians, confirming their fitness for global trade during the rental period.

Delivery and Site Access Requirements

Delivering an open-top container requires precision planning, especially when handling heavy specialised units. Shipping Containers of Grangemouth coordinates every delivery to ensure site safety and efficient placement. Failed deliveries due to site obstructions often result in additional haulage charges.

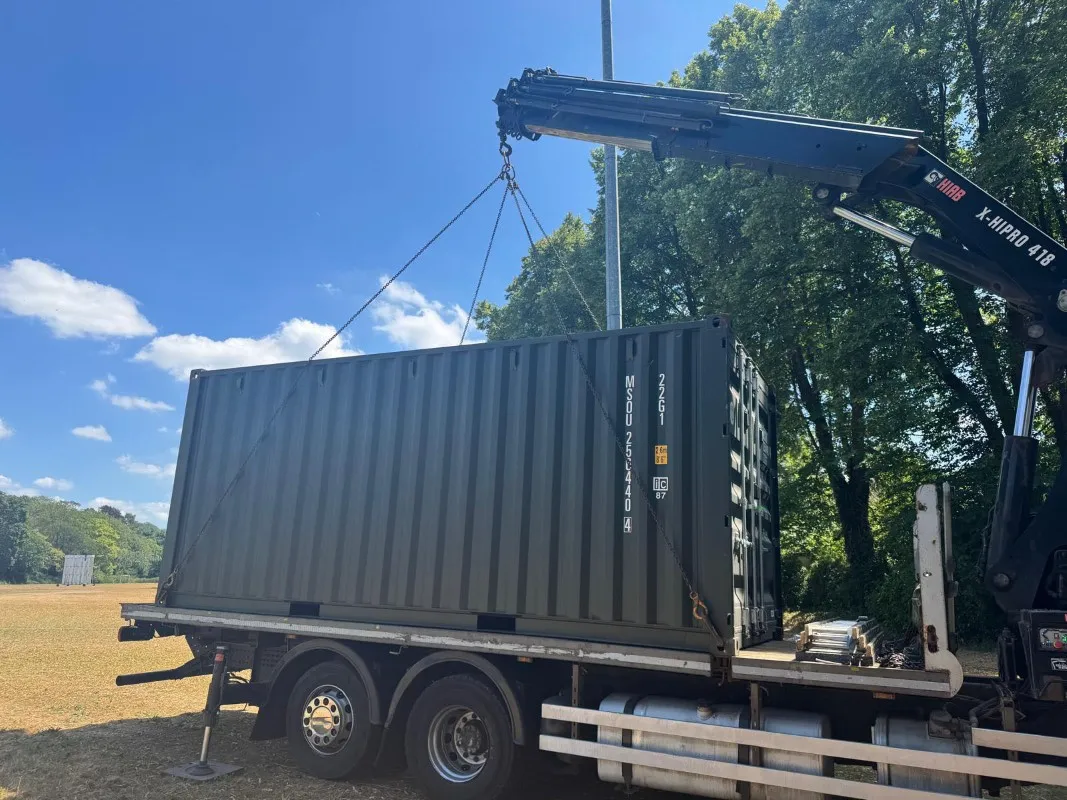

Hiab Delivery and Crane Placement

Delivery is typically performed with a Hiab vehicle, a truck equipped with a hydraulic crane arm that lifts and places the container. A 20ft unit requires a rigid vehicle approximately 40ft long, while a 40ft unit requires an articulated vehicle up to 65ft long. Because open-top units are often used for heavy cargo, the truck must be able to park close to the final drop-off point to maintain crane stability. The reach of a Hiab crane decreases significantly with distance from the vehicle, particularly with heavier 40ft units.

Ground Conditions and Levelling

The unit must be placed on level, hard-standing ground. Hardstanding refers to a solid surface such as concrete, tarmac, or compacted gravel that can support the weight of the vehicle and the container without sinking. If the ground is not level, the container frame may rack, which can cause the swing out rear header to jam or the doors to become difficult to lock. We recommend using railway sleepers or concrete pads at the four corner castings to ensure the unit remains level and slightly elevated to promote airflow. Airflow beneath the unit prevents moisture buildup and protects the marine ply floor.

Obstructions and Overhead Safety

• Overhead Cables: Safety regulations require significant clearance from live power lines, often up to 20m. This is non-negotiable for crane operations.
• Tree Branches: Ensure the delivery path and the drop zone are clear of low-hanging foliage that could snag the crane or damage the tarpaulin roof.
• Underground Services: Avoid placement over maintenance holes or septic tanks, as the combined weight of a vehicle and a 40ft shipping container can cause structural collapse of underground pipes.

Maintenance and Hire Aftercare

Maintaining the integrity of the tarpaulin and roof bows is essential for the longevity of an open-top unit and the protection of your cargo. Shipping Containers of Grangemouth advises regular inspections of the roof components to prevent water ingress during the hire period.

The tarpaulin should be checked for tears or abrasions, especially after loading operations involving heavy machinery. If a tear occurs, it should be patched immediately using industrial-grade PVC repair kits to maintain the wind and watertight status. Roof bows should be inspected for bends; if a bow is damaged, it may not fit correctly in the side rail pockets, compromising the container’s structural tension. We also recommend cleaning the door gaskets and swing-out header seals regularly to ensure a tight fit when the container is closed. Proper seal maintenance prevents rust formation and ensures easy access throughout the rental term.

Hire vs Buy: Selection for Scottish Businesses

Shipping Containers of Grangemouth provides equipment tailored to the duration and nature of your project. The decision to purchase or rent depends on your capital requirements and equipment turnover. For temporary projects in the central belt, we recommend storage container hire Stirling or storage container hire Falkirk to minimise transport lead times.

Purchasing an open-top unit is ideal for companies with permanent heavy machinery transport needs or those performing high-end container conversions. For those requiring equipment for a single project or seasonal peak, rental offers a flexible alternative. Owners have full control over the asset, while hirers benefit from maintenance support and the ability to return the unit once the task is complete. Check our standard 20ft shipping container specs if you are unsure whether you need the specialised open top configuration or a standard dry box for your inventory.
